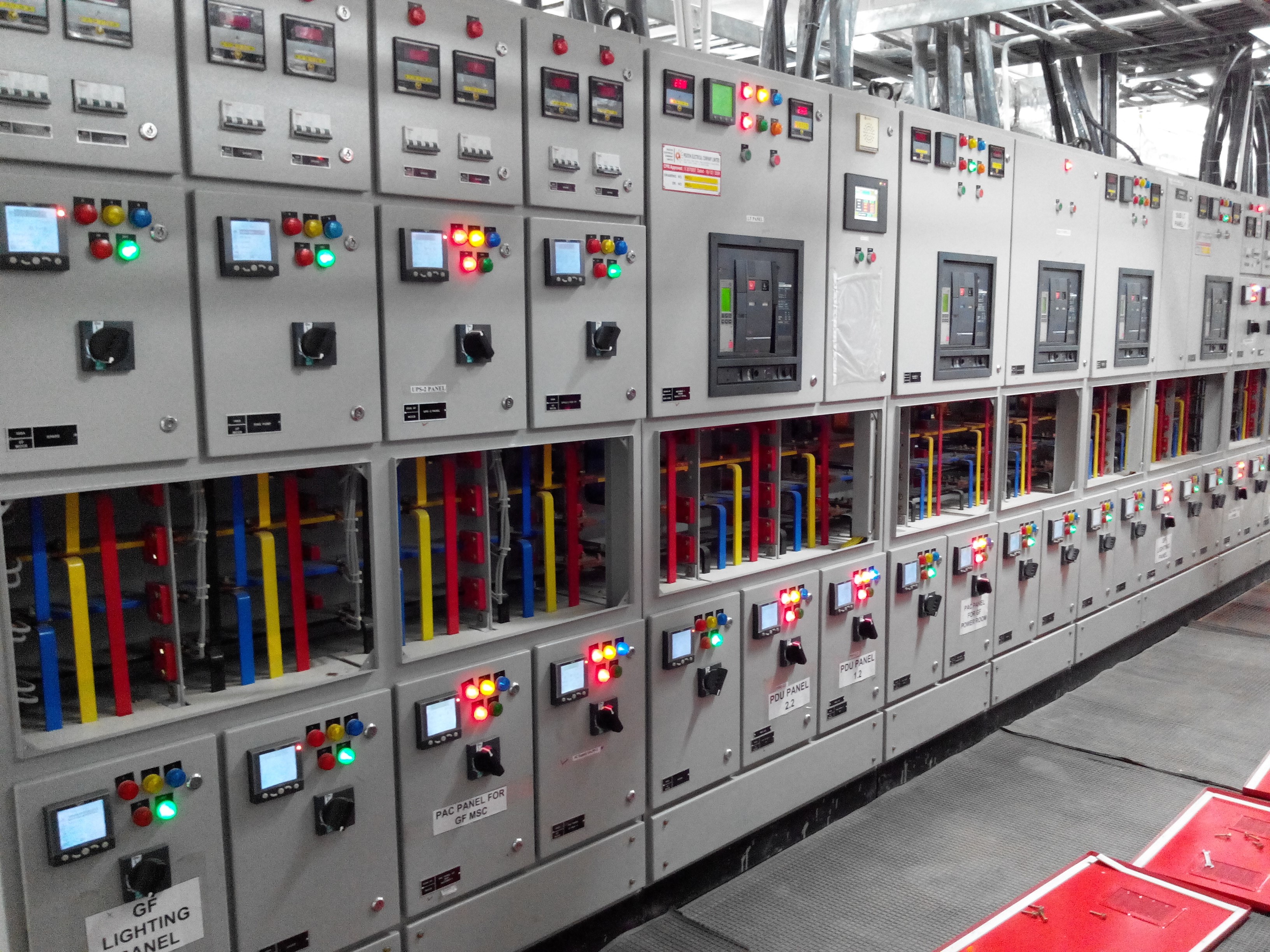

HT & LT panel
Panel Testing & Servicing
- Local / remote operations in test as well as service position including all electrical interlocks.
- Control circuit operational test.
- Tripping through relays and trip circuit healthiness.
- IR values of power and control circuit.
- Checking of panel indication, annunciation, and space heater circuit.
- Secondary injection testing of protective relays.

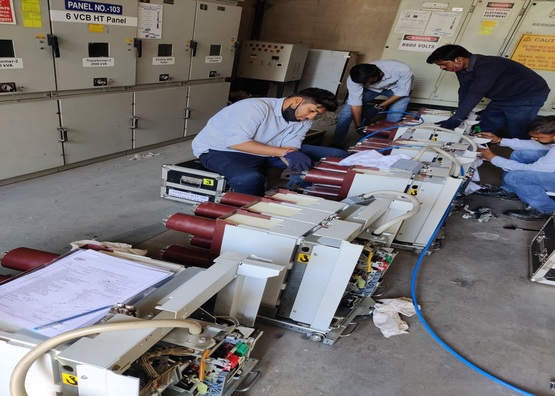

11/33KV Vacume Circuit Breaker
11 /33KV KV Circuit Breaker Testing
- Mechanical & electrical operation check on test and service position
- All interlock check with system
- Closing & Tripping from Local & Remote Commands.
- Trip Free & anti-pumping operation
- Check on spring charging motor.
- Check of correct operation of limit switches and time of charging.

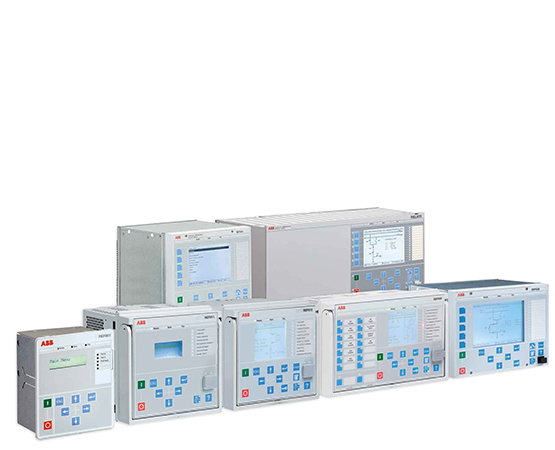

Protective and Auxiliary Relay

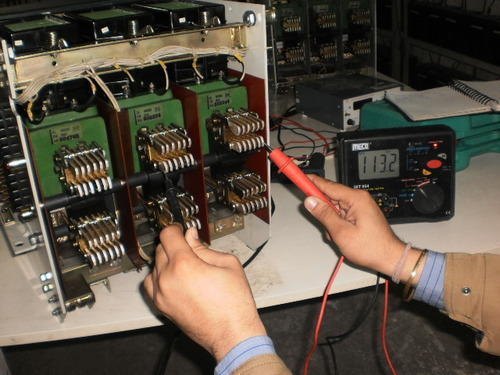

Protective & Auxilary Relays Testing
- Wiring check and tightness of connections. Free movement of rotating parts, mechanically / electrically operated flags and contacts. Checks on trip isolating contacts, shorting of plug bridges.
- Insulation resistance test.
- Checking of electrical operation indicators, internal auxiliary elements, DC auxiliary and master trip relays for pick-up and drop-off values and drain current in case of Static, Microprocessor and Numerical relays including resistance of coil.
- Secondary injection tests on IDMTL – current – volt relay, instantaneous current volt relay, time delay relay,motor protection relay, differential relay and all other relay as per IS and manufacturers tests recommendation and commissioning manuals

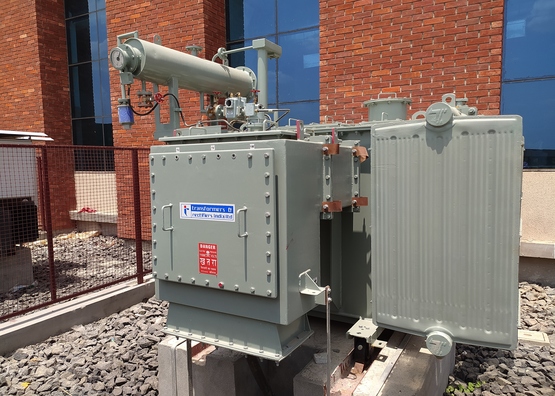

Transformer
Transformer Testing(Oil Type)
- Magnetising Current Check
- Magnetising Balance Check
- Insulation Resistance Test
- General Inspection of Transformer and visual Check.
- Through Tightening of all joints like HV Termination, LV Termination.
- Function check of WTI ,OTI,Bucholz ,RTCC & OLTC.
LT Air Circuit Breaker
ACB Service & testing
- ON-OFF operation check
- Checking of manual as well as remote tripping
- Rack in/Out operation check.
- CT/CC/SC resistance check / IR Test
- Protective relay testing by secondary injection kit
- Removal of old lubrication and applying new one.
- Through cleaning of breaker and contacts with CRC.

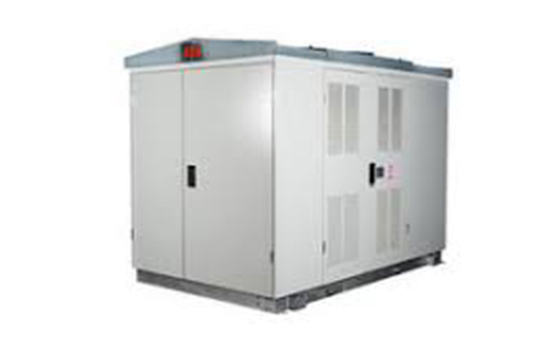

CSS
- HT COMPARTMENT : VCB/RMU/LBS - Testing & Servicing
- TRANSFORMER COMPARTMENT: Testing & Servicing
- LT COMPARTMENT : ACB /MCCB/APFC Testing & Servicing
- Through Cleaning of CSS and All Interlock check.
