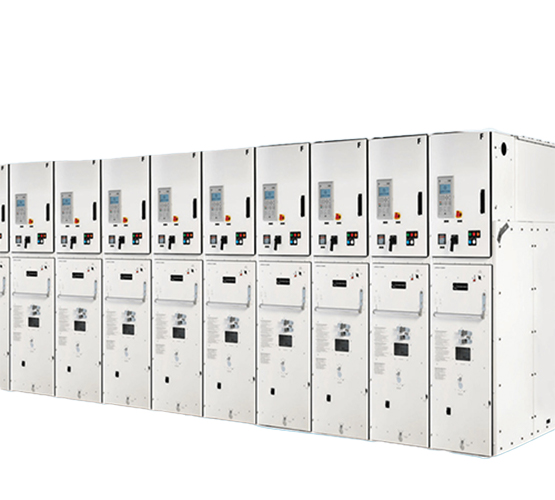

Air Insulated switchgear
We are Authorised Channel Partner for L&T make MV Switchgear .
Systems voltage:- 11kV,22kV,33kV
Current rating upto 3150A with natural cooling
• Internal arc classification AFLR upto 40kA for 1 second and 50kA for 0.5 second
• Compact and safe
• Single latch door closing & optional rear door interlock
Silent Feature
- Complies with IEC 62271-100, 62271-102 and 62271-200
- Metal clad,Fully compartmentalized panel
- Horizontal isolation, horizontal draw-out & floor rolling trolly type VCB
- Fully type tested at renowned STL laboratories
- Partition class is PM
- mechanical endurance class M2
- Electrical endurance class E2
- Indoor type panel with ingress protection rating IP4X (Higher IP on request)
- Draw out and fixed type PT available
- Internal arc classification AFLR upto 40kA for 1 second and 50kA for 0.5 second (for full panel only)
Silent Feature
SAFETY
- True close door operation as per IEC standard
- Rack in / Rack out, breaker closing / tripping are behind closed door
- Automatic independent safety shutters to prevent accidental contact with live parts
- Pad lockable door to ensure operator safety
USER FRIENDLY
- Compact, light weight & hence easy to maneuver
- Generous space for cable termination
- Safety Shutters with individual padlocking facility are available.
- Both the shutters can be independently kept in open or close position during maintenance
- Draw out and fixed type PT available
